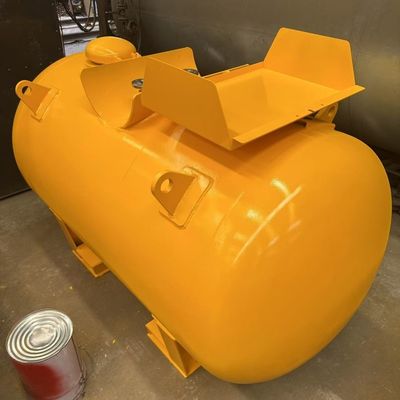

Vanadium Oxytrichloride Storage Tank For Extreme Environments And Safety Compliance

MOQ:	Negotiable
Price:	$4,000 per unit (subject to the contract)
Delivery Period:	1 month
Supply Capacity:	3 units per day

Detail Information

Product Description

Detail Information

Place of Origin

Zibo, China

Brand Name

Lushen

Certification

TS/CCS

Model Number

CG0.85

UN Portable Tank Instruction:

Tare Mass:

655 Kg

Max. Operating Gross Mass:

2095 Kg

Max. Permissible Payload:

1440 Kg

M.A.W.P.:

6.2 Bar

Volume(water Capacity At 20℃):

870 L

Material & Thk.(inner) Shell:

S31603 10mm(shell/heads)

Test Pressure:

15 Bar

Design Temperature:

-40~+70 ℃

Thk., Equivalent Mild Steel:

10.7mm(shell) 9.9mm(heads)

Min. Safe Vent Capacity:

0.565 Nm³/s

Overall Dimensions:

1746x870x1112

Effective Thk. Of Shell:

8.0mm(shell) 7.4mm(heads)

Rupture Discs:

DN25,1.5MPa,1pc

Applicable Cargo:

VANADIUM OXYTRICHLORIDE (UN2443)

G.A. Drawing No.:

CG0.85-00

Shell Design Code:

IMDG CODE,GB/T150

Approval No. Of Drawings:

SD25S3025

Warranty:

12 Months

Model:

CG0.85

Highlight:

Vanadium Oxytrichloride Storage Tank

T7 industrial chemical storage tanks

Vanadium Oxytrichloride chemical storage tanks

Product Description

Industrial-Grade Vanadium Oxytrichloride Storage Tank for Extreme Environments and Safety Compliance

Container Overview

The CG0.85 UN T7 is a heavy-duty, corrosion-resistant storage container engineered for transporting hazardous chemicals, including Vanadium Oxytrichloride (UN2443). Built to withstand extreme environments, this unit complies with international safety regulations, making it suitable for demanding industrial applications.

Technical Parameters

Attribute	Value	Attribute	Value
Material	S31603 Stainless Steel	Max Gross Weight	2095 kg
Operating Range	-40°C to +70°C	Water Capacity	870L (20°C)
Vent Flow Rate	0.565 Nm³/s	Tare Weight	655 kg
Shell Thickness	10 mm	Working Pressure	6.2 bar (MAWP)
Certification	UN T7, IMDG, GB/T150	Payload Capacity	1440 kg
Rupture Disc	DN25, 1.5MPa	Test Pressure	15 bar

Core Advantages

Exceptional Durability – Made from 10mm-thick S31603 stainless steel, ensuring long-term resistance to corrosive substances.
Broad Temperature Tolerance – Reliable performance in extreme conditions (-40°C to +70°C), suitable for varied climates.
Advanced Safety Mechanisms – Features a 1.5MPa rupture disc and high-efficiency venting (0.565 Nm³/s) to prevent overpressure hazards.
Optimized Transport Efficiency – Lightweight design (655 kg tare weight) maximizes cargo load (2095 kg gross weight), reducing logistics costs.
Versatile Applications – Primarily used for UN2443 but adaptable for other approved corrosive liquids.

Operational Guidelines

Chemical Compatibility – Approved for Vanadium Oxytrichloride; confirm suitability before loading other chemicals.
Pressure Limits – Never exceed the 6.2 bar Maximum Allowable Working Pressure (MAWP).
Temperature Restrictions – Avoid prolonged exposure outside -40°C to +70°C to prevent structural weakening.
Routine Inspections – Regularly check the rupture disc, tank walls, and vent system for corrosion or damage.
Regulatory Adherence – Complies with IMDG, CCS, TS, GB, and ISO standards for hazardous material transport.

Industry Use Cases

Chemical Processing – Secure handling of reactive industrial compounds.
Energy Solutions – Suitable for vanadium redox flow battery (VRFB) electrolytes.
Pharmaceuticals – Safe storage of volatile ingredients in drug manufacturing.
International Shipping – UN T7 certification ensures compliant hazardous material transport worldwide.

Market Differentiators

Global Certifications – Meets UN, IMDG, and GB/T150 requirements.
Heavy-Duty Build – Reinforced stainless-steel construction prevents chemical degradation.
Dual Safety Systems – Combines rupture disc and venting for redundant pressure control.
Cost-Effective Transport – High payload-to-weight ratio lowers per-unit shipping expenses.
