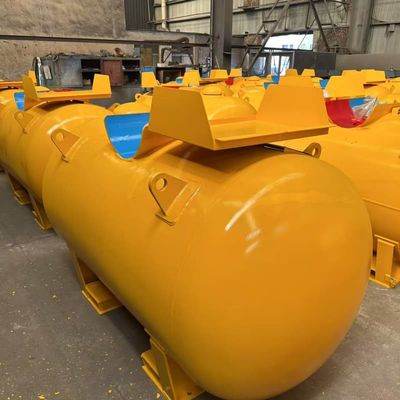

Petrochemical Grade Pressure Tank Vessel 6bar MAWP Professional Alkyl Aluminum Shipping Solution

MOQ:	Negotiable
Price:	$4,000 per unit (subject to the contract)
Delivery Period:	1 month
Supply Capacity:	3 units per day

Detail Information

Product Description

Detail Information

Place of Origin

Zibo, China

Brand Name

Lushen

Certification

TS/CCS

Model Number

CG1.1D

Overall Dimensions(mm):

2195x1120x1337

Tare Mass:

919 Kg

UN Portable Tank Instruction:

M.A.W.P.:

6 Bar

Max. Permissible Payload:

1413 Kg

Max. Operating Gross Mass:

2332 Kg

Test Pressure:

15 Bar

Material & Thk.(inner) Shell:

16MnDR GB/T3531 10mm(shell/heads)

Volume(water Capacity At 20℃):

1880 L

Effective Thk. Of Shell:

10mm(shell) 9.84mm(heads)

Thk., Equivalent Mild Steel:

10.17mm(shell) 10mm(heads)

Design Temperature:

-40~+70 ℃

Min. Safe Vent Capacity:

0.788 Nm³/s

Rupture Discs:

YC25-1.5-A,1.5MPa,1pc, DN25,1,135Nm3/s

Approval No. Of Drawings:

QD20S3043-A

Applicable Cargo:

Alkyl Aluminum (UN3394)

G.A. Drawing No.:

CG1.1D-00-00

Shell Design Code:

IMDG CODE,GB/T150

Warranty:

12 Months

Model:

CG1.1D

Highlight:

pressure tank vessel 6bar

petrochemical pressure tank vessel

petrochemical pressure vessel tank

Product Description

Professional Alkyl Aluminum Shipping Solution Petrochemical-Grade Portable Container 6bar MAWP

Key Features

Complies with UN T21 certification, IMDG Code, and GB/T150 standards
Engineered for transporting hazardous Alkyl Aluminum (UN 3394)—a pyrophoric, water-reactive compound
Built with 16MnDR high-strength steel (10mm shell/head thickness) for extreme durability
1880L capacity with a 1413kg max payload, ideal for bulk chemical logistics
Operates in -40°C to +70°C environments, ensuring reliability in harsh conditions
Safety mechanisms include a 1.5MPa rupture disc (YC25-1.5-A) and 0.788 Nm³/s venting capacity
Validated in China’s high-demand chemical and energy logistics sector

Technical Overview

The CG1.1D UN T21 portable tank is tailored for Alkyl Aluminum (UN 3394), meeting strict hazardous material transport regulations. Its 16MnDR steel construction (10mm thickness) guarantees secure containment, while its 6bar working pressure and 15bar test pressure reflect robust safety margins.

With an 1880L volume and 1413kg payload, it maximizes efficiency for industrial chemical shipments. Critical safety elements include a DN25 rupture disc (1.5MPa burst pressure) and compliance with IMDG Code and GB/T150 for global hazardous cargo transport.

Extensively tested by leading Chinese chemical firms, this tank performs reliably under high-pressure, corrosive conditions. Its broad temperature range (-40°C to +70°C) ensures adaptability across climates.

Specifications

Parameter	Value	Parameter	Value
Material (Shell)	16MnDR Steel	Max Payload	1413 kg
Vent Capacity	0.788 Nm³/s	Gross Mass	2332 kg
Design Standards	IMDG CODE, GB/T150	Tare Mass	919 kg
Test Pressure	15 bar	Shell Thickness	10 mm (shell/heads)
Model	CG1.1D	MAWP	6 bar
UN Tank Code	T21	Rupture Disc	YC25-1.5-A, 1.5MPa
Capacity (20°C)	1880 L	Design Temperature	-40°C to +70°C

Safety & Handling Guidelines

Exclusive for Alkyl Aluminum (UN 3394)—strictly prevent water/air exposure
Never surpass 6bar MAWP—routine checks on pressure relief systems required
Maintain inert gas shielding during transfers to avoid pyrophoric reactions
Adhere to IMDG hazardous material transport laws
Store in dry, ventilated spaces, isolated from ignition sources
Operators should wear fire-resistant PPE (suits, face shields)

Industrial Uses

Organometallic synthesis & shipping
Polyolefin/polymer catalyst production
Pharmaceutical intermediate handling
Battery material manufacturing & distribution
Bulk chemical supply for petrochemical plants
UN-certified international hazardous cargo transport

Reliability Assurance

This tank meets China’s top-tier chemical industry standards, proving its durability in high-risk applications. Manufacturing follows GB/T150 and IMDG Code, ensuring compliance with global hazardous material logistics requirements.
