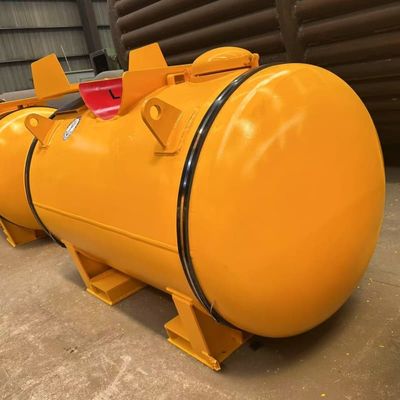

3060x2003x2400mm Alkyl Metal Storage Large Water Pressure Tank UN3394 Transportation
  • name
  • name
  • name

3060x2003x2400mm Alkyl Metal Storage Large Water Pressure Tank UN3394 Transportation

MOQ: Negotiable
Price: $14,000 ~＄16,000 per unit (subject to the contract).
Delivery Period: 1 month
Supply Capacity: 3 units per day
Detail Information
Product Description
Detail Information
Place of Origin
Zibo, China
Brand Name
Lushen
Certification
TS/CCS
Model Number
CG1.95
Overall Dimensions(mm):
3060x2003x2400
UN Portable Tank Instruction:
T21
Max. Operating Gross Mass:
9280 Kg
Tare Mass:
3200 Kg
Max. Permissible Payload:
6080 Kg
M.A.W.P.:
6 Bar
Test Pressure:
18.2 Bar
Volume(water Capacity At 20℃):
8090 Liters
Design Temperature:
-40~+70
Material & Thk.(inner) Shell:
16MnDR 12mm(shell/heads)
Thk., Equivalent Mild Steel:
10.33mm(shell) 10mm(heads)
Effective Thk. Of Shell:
11mm(shell) 10.66mm(heads)
Min. Safe Vent Capacity:
1.67
Relief Valves:
ANA42F-25P,DN80, 1.33MPa,1pc
Fusible Elements:
3/4"NPT,140℃,1pc
G.A. Drawing No.:
CG1.95-00-00
Approval No. Of Drawings:
SD23S3050
Shell Design Code:
IMDG CODE,GB/T150
Applicable Cargo:
Alkyl Metal (UN 3394)
Warranty:
12 Months
Model:
CG1.95
Highlight:

storage large water pressure tank

,

large water pressure tank un3394

,

storage pressure vessel tank

Product Description

3060x2003x2400mm Alkyl Metal Storage Tank UN3394 Transportation Storage Pressure Vessel



Advanced Chemical Containment Solution Technical Brief

System Excellence

  • Certified dual-protection architecture (CCS & IMDG)
  • Engineered for polar to tropical deployment
  • Military-grade 16MnDR containment structure
  • Smart pressure/thermal management system
  • Sinopec Gold Partner certified solution

Performance Matrix

Engineering Aspect

Critical Specification

Operational Benchmark

Compliance Marker

Thermal Safeguard

140°C auto-release fuse

Ambient Range

-40°C~+70°C

Structural Frame

12mm armored alloy

Fluid Volume

8.09m³ @20°C

Pressure Profile

6bar operational ceiling

Stress Test

18.2bar proof

Mass Analytics

3.2t empty mass

System Ceiling

9.28t gross

Safety Interface

DN80 pressure regulator

Ventilation Spec

1.67m³/s flow

Certifications

UN T21 portable tank

Cargo Allowance

6.08t payload

Physical Geometry

3.06×2.0×2.4m frame

Regulation Set

GB/T150+IMDG

Service Package

1-year full coverage

Approved Cargo

UN3394 only

Operational Framework

  1. Performance Thresholds
    • Thermal operating band: -40°C to +70°C
    • Pressure operational limit: 6bar continuous
    • Exclusive cargo authorization
  2. Pre-Operation Checklist
    ► Mandatory verifications:
    • Pressure management system diagnostic
    • Thermal cutoff integrity audit
    • Ventilation performance certification
    • Progressive loading methodology
    • Real-time mass analytics
  3. Absolute Constraints
    • Structural modifications prohibited
    • Safety systems must remain engaged
    • Design limits inviolable
  4. Crisis Management
    • Containment failure response
    • Thermal overload protocol
  5. Validation Documents
    • Certification identifier
    • Engineering schematics
    • Standardization compliance

Deployment Spectrum

Global Logistics

  • Hazardous material transport network
  • All-climate operational readiness
  • Specialized carrier integration

Industrial Integration

  • Process facility interface
  • High-pressure material transfer

Strategic Reserves

  • Emergency storage capacity
  • Saltwater-resistant construction

Regulatory Compliance

  • Worldwide transport certification
  • ISO container compatibility
Tags:

big pressure tank,

large water pressure tank,

t21 big pressure tank
