Alkyl Metal Storage Tanks For Pyrophoric Compound Logistics CCS Validated

MOQ: Negotiable
Price: $14,000 ~＄16,000 per unit (subject to the contract)
Delivery Period: 1 month
Supply Capacity: 3 units per day
Detail Information
Product Description
Detail Information
Place of Origin
Zibo, China
Brand Name
Lushen
Certification
TS/CCS
Model Number
CG1.95
Overall Dimensions(mm):
3060x2003x2400
UN Portable Tank Instruction:
T21
Max. Operating Gross Mass:
9280 Kg
Tare Mass:
3200 Kg
Max. Permissible Payload:
6080 Kg
M.A.W.P.:
6 Bar
Test Pressure:
18.2 Bar
Volume(water Capacity At 20℃):
8090 Liters
Design Temperature:
-40~+70
Material & Thk.(inner) Shell:
16MnDR 12mm(shell/heads)
Thk., Equivalent Mild Steel:
10.33mm(shell) 10mm(heads)
Effective Thk. Of Shell:
11mm(shell) 10.66mm(heads)
Min. Safe Vent Capacity:
1.67
Relief Valves:
ANA42F-25P,DN80, 1.33MPa,1pc
Fusible Elements:
3/4"NPT,140℃,1pc
G.A. Drawing No.:
CG1.95-00-00
Approval No. Of Drawings:
SD23S3050
Shell Design Code:
IMDG CODE,GB/T150
Applicable Cargo:
Alkyl Metal (UN 3394)
Warranty:
12 Months
Model:
CG1.95
Highlight:

alkyl metal storage tanks

,

alkyl pressure storage tanks

,

pyrophoric metal storage tanks

Product Description

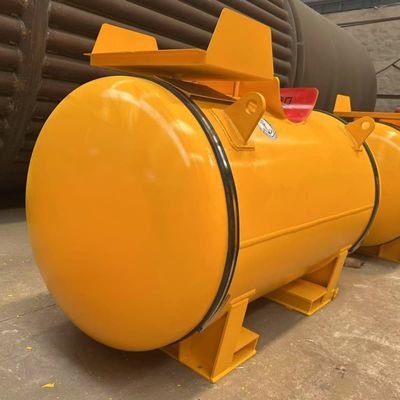

Alkyl Metal Storage Tank for Pyrophoric Compound Logistics CCS-validated Model CG1.95



System Advantages

  • Dual safety-certified (CCS & IMDG CODE compliant)
  • Extreme condition operational reliability
  • Heavy-duty 16MnDR alloy construction
  • Advanced pressure/thermal protection
  • Sinopec-validated transport solution

Technical Parameter Matrix

Performance Attribute

Specification

Design Feature

Engineering Value

Structural Integrity

16MnDR alloy (12mm nominal)

Payload Capacity

6,080 kg maximum

Emergency Ventilation

Minimum 1.67 Nm³/s flow rate

Temperature Tolerance

-40°C to +70°C range

Pressure Management

ANA42F-25P valve (DN80, 1.33MPa)

Liquid Capacity

8,090 liters @20°C

International Certification

UN T21 compliant

Construction Standard

GB/T 150, IMDG CODE

Thermal Protection

140°C fusible element (3/4"NPT)

Gross Weight Limit

9,280 kg total

Physical Footprint

3,060×2,003×2,400 mm dimensions

Pressure Testing

18.2 bar verified

Quality Assurance

12-month warranty

Operational Pressure

6 bar MAWP

Empty Weight

3,200 kg tare mass

Approved Contents

UN 3394 substances only

Operational Framework

  1. System Boundaries
    • Temperature operational window: -40°C to +70°C
    • Pressure constraints: 6 bar working / 18.2 bar test
    • Cargo limitation: Alkyl metal compounds exclusively
  2. Mandatory Safety Protocol
    ► Pre-use verification:
    • Pressure relief valve operational check
    • Fusible element condition inspection
    • Ventilation system performance validation

► Loading procedures:

    • Controlled filling/unloading required
    • Continuous mass monitoring (≤9,280 kg total)
  2. Absolute Restrictions
    • Unauthorized modifications prohibited
    • Safety system interference forbidden
    • Specification exceedance not allowed
  3. Contingency Measures
    • Leak scenario: Immediate isolation procedure
    • Fire situation: Indirect cooling protocol
  4. Compliance Documentation
    • Certification Reference: SD23S3050
    • Technical Drawings: CG1.95-00-00
    • Governing Standards: IMDG/GB/T 150

Application Portfolio

A. Hazardous Material Logistics

  • Global chemical transportation
  • Polar region capability
  • Explosion-proof vehicle compatibility

B. Industrial Processing

  • Closed-circuit material transfer
  • High-pressure system integration

C. Emergency Storage

  • Bulk chemical reserve capacity
  • Marine-environment resilience

D. International Shipping

  • Multimodal transport certification
  • Standard container compatibility
