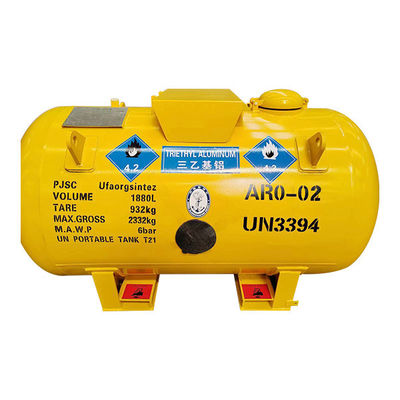

CG1.1Y Alkyl Aluminum Pressure Container Safe Transport With 1421kg Payload Capacity

MOQ:	Negotiable
Price:	$14,000 ~＄16,000 per unit (subject to the contract)
Delivery Period:	1 month
Supply Capacity:	3 units per day

Detail Information

Product Description

Detail Information

Place of Origin

Zibo, China

Brand Name

Lushen

Certification

TS/CCS

Model Number

CG1.1Y

Overall Dimensions(mm):

2215x1190x1445

UN Portable Tank Instruction:

Max. Operating Gross Mass:

2509 Kg

Tare Mass:

1088 Kg

Max. Permissible Payload:

1421 Kg

M.A.W.P.:

6 Bar

Test Pressure:

15 Bar

Volume(water Capacity At 20℃):

1880 Liters

Design Temperature:

-40~+70

Material & Thk.(inner) Shell:

16MnDR 10mm(shell/heads)

Thk., Equivalent Mild Steel:

10.17mm(shell) 10mm(heads)

Effective Thk. Of Shell:

10mm(shell) 9.84mm(heads)

Min. Safe Vent Capacity:

0.788 Nm³/s

Rupture Discs:

YC25-1.5-A,1.5MPa, DN25,1pc,1.135Nm3/s

G.A. Drawing No.:

CG1.1Y-00-00

Approval No. Of Drawings:

QD21S3041

Shell Design Code:

IMDG CODE,GB/T150

Applicable Cargo:

Alkyl Metal (UN3394)

Warranty:

12 Months

Model:

CG1.1Y

Highlight:

pressure container safe

alkyl aluminum pressure container

alkyl pressure holding tank

Product Description

CG1.1Y Alkyl Aluminum Tank Container Safe Transport with 1421 kg Payload Capacity

Product Overview:

The CG1.1Y Tank Container is designed for the safe transport of Alkyl Aluminum (UN3394) with a maximum allowable payload of 1421 kg. It is built with durability in mind, featuring a robust 16MnDR steel shell and a design temperature range from -40°C to +70°C. The container meets stringent safety standards, including a test pressure of 15 bar, and is equipped with a rupture disc for added protection. With its compact dimensions of 2215x1190x1445 mm, this container is ideal for secure and efficient chemical transport.

Product Description:

The CG1.1Y Tank Container offers a highly specialized solution for the transportation of alkyl aluminum, an important chemical in industrial applications. It adheres to the UN Portable Tank Instructions (T21) and complies with IMDG CODE and GB/T150 standards. The container features a single compartment design, ensuring efficient loading and unloading. Its substantial insulation and structural design provide excellent protection during transit, while the safety features, including relief valves and rupture discs, ensure the safety of both the product and the environment.

Core Product Parameters:

Parameter	Value	Parameter	Value
Overall Dimensions	2215x1190x1445 mm	Volume (water capacity at 20°C)	1880 liters
Max. Operating Gross Mass	2509 kg	Max. Permissible Payload	1421 kg
Max. Allowable Working Pressure (M.A.W.P.)	6 bar	Test Pressure	15 bar
Design Temperature	-40°C to +70°C	No. of Compartment	1
Material & Thickness (Inner Shell)	16MnDR 10mm (shell/heads)	Effective Thickness of Shell	10mm (shell), 9.84mm (heads)
Minimum Safe Vent Capacity	0.788 Nm³/s	Rupture Disc	YC25-1.5-A, 1.5 MPa, DN25, 1.135 Nm³/s

Product Notes:

Ensure proper maintenance and inspection of the safety relief valves and rupture discs for reliable performance.
The tank container is suitable for the transportation of alkyl aluminum (UN3394) only. Other substances may not meet safety specifications.
Always verify the integrity of the tank before transportation, particularly when dealing with hazardous chemicals.
Temperature extremes should be avoided; ensure the design temperature range is adhered to during operation.

Product Application Scenarios:

The CG1.1Y Tank Container is designed for use in the chemical and industrial sectors, particularly for the transport of highly reactive substances such as Alkyl Aluminum. Ideal applications include:

Chemical Manufacturing and Processing: Safe transport of reactive chemical agents.
Industrial Supply Chains: Handling specialized chemicals used in various manufacturing processes.
Research and Development: Secure delivery of substances for scientific experimentation and industrial testing.
