Alkyl Aluminum Transport Tank Max Payload 1421Kg 10mm Steel Shell Safe Handling
  • name
  • name
  • name

Alkyl Aluminum Transport Tank Max Payload 1421Kg 10mm Steel Shell Safe Handling

MOQ: Negotiable
Price: $4,000 per unit (subject to the contract)
Delivery Period: 1 month
Supply Capacity: 3 units per day
Detail Information
Product Description
Detail Information
Place of Origin
Zibo, China
Brand Name
Lushen
Certification
TS/CCS
Model Number
CG1.1Y
UN Portable Tank Instruction:
T21
Tare Mass:
1088 Kg
Overall Dimensions(mm):
2215x1190x1445
Max. Operating Gross Mass:
2509 Kg
M.A.W.P.:
6 Bar
Material & Thk.(inner) Shell:
16MnDR 10mm(shell/heads)
Test Pressure:
15 Bar
Max. Permissible Payload:
1421 Kg
Design Temperature:
-40~+70
Min. Safe Vent Capacity:
0.788 Nm³/s
Volume(water Capacity At 20℃):
1880 Liters
Applicable Cargo:
Alkyl Metal (UN3394)
Rupture Discs:
YC25-1.5-A,1.5MPa, DN25,1pc,1.135Nm3/s
Effective Thk. Of Shell:
10mm(shell) 9.84mm(heads)
Thk., Equivalent Mild Steel:
10.17mm(shell) 10mm(heads)
Shell Design Code:
IMDG CODE,GB/T150
G.A. Drawing No.:
CG1.1Y-00-00
Approval No. Of Drawings:
QD21S3041
Warranty:
12 Months
Model:
CG1.1Y
Highlight:

Alkyl Aluminum Transport Tank

,

Alkyl Transport Tank 1421kg

,

10mm Shell Transport Tank

Product Description

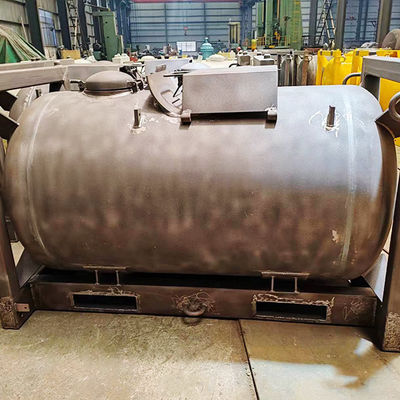

Alkyl Aluminum Transport Tank – CG1.1Y Max. Payload 1421 kg 10mm Steel Shell Safe Handling



Product Overview:

  • Operating Temperature Range: -40°C to +70°C

  • Test Pressure: 15 bar

  • Maximum Payload Capacity: 1421 kg

  • Volume: 1880 liters

  • Rupture Disc: YC25-1.5-A, 1.5 MPa

  • Compact Design: 2215x1190x1445 mm

  • Alkyl Aluminum (UN3394) Transport

The CG1.1Y Tank Container is designed to transport Alkyl Aluminum (UN3394) safely and efficiently. Made from durable 16MnDR steel, it features a robust construction ideal for harsh transport conditions. With a test pressure of 15 bar and a temperature tolerance from -40°C to +70°C, it is suited for a variety of environmental conditions. The container also incorporates a rupture disc to enhance safety during transit.



Detailed Parameters:

Parameter Value Parameter Value
Max. Allowable Working Pressure 6 bar Volume (water capacity at 20°C) 1880 liters
Max. Operating Gross Mass 2509 kg Rupture Disc YC25-1.5-A, 1.5 MPa, DN25
Design Temperature -40°C to +70°C Effective Thickness of Shell 10mm (shell), 9.84mm (heads)
Test Pressure 15 bar Minimum Safe Vent Capacity 0.788 Nm³/s
Material & Thickness (Inner Shell) 16MnDR 10mm (shell/heads) No. of Compartments 1
Min. Safe Vent Capacity 1.135 Nm³/s Maximum Permissible Payload 1421 kg

Important Notes:

  • Regular inspections of safety components such as rupture discs and valves are essential.

  • Only use for Alkyl Aluminum (UN3394) to maintain safety and compliance.

  • Follow the recommended temperature range to prevent any failures during transit.



Key Applications:

  • Chemical Manufacturing: For safe and reliable transport of hazardous chemicals.

  • Industrial Logistics: Handles the transportation of specialized chemicals for production.

  • Research & Development: Delivers critical materials for testing and research.
