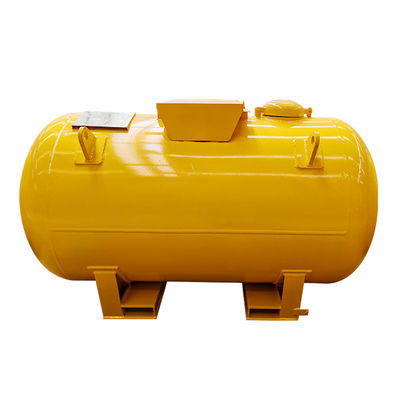

Lightweight Metal Storage Tank With 1202kg Payload For Hazardous Chemical Logistics
  • name
  • name
  • name

Lightweight Metal Storage Tank With 1202kg Payload For Hazardous Chemical Logistics

MOQ: Negotiable
Price: $14,000 ~＄16,000 per unit (subject to the contract)
Delivery Period: 1 month
Supply Capacity: 3 units per day
Detail Information
Product Description
Detail Information
Place of Origin
Zibo, China
Brand Name
Lushen
Certification
TS/CCS
Model Number
CG1.1E
Overall Dimensions(mm):
1875x1120x1337
UN Portable Tank Instruction:
T21
Max. Operating Gross Mass:
2036 Kg
Tare Mass:
834 Kg
Max. Permissible Payload:
1202 Kg
M.A.W.P.:
6 Bar
Design Temperature:
-40~+70 ℃
Volume(water Capacity At 20℃):
1600 L
Test Pressure:
15 Bar
Material & Thk.(inner) Shell:
16MnDR 10mm(shell/heads)
Thk., Equivalent Mild Steel:
10.17mm(shell) 10mm(heads)
Effective Thk. Of Shell:
10mm(shell) 9.84mm(heads)
Rupture Discs:
YC25-1.5-A,1.5MPa, DN25,1pc,1.135Nm3/s
Min. Safe Vent Capacity:
0.788 Nm3/s
G.A. Drawing No.:
CG1.1E-00-00
Approval No. Of Drawings:
QD21S3042
Shell Design Code:
IMDG CODE,GB/T150
Applicable Cargo:
Alkyl Aluminum (UN3394)
Warranty:
12 Months
Model:
CG1.1E
Highlight:

lightweight metal storage tank

,

lightweight pressurized storage tank

,

1202kg metal storage tank

Product Description

Lightweight CG1.1E Tank with 1202kg Payload for Hazardous Chemical Logistics

  • Designed specifically for Alkyl Aluminum (UN3394), a highly reactive chemical.

  • Complies with T21 UN Portable Tank specifications and international transport regulations.

  • Equipped with a rupture disc for overpressure control and enhanced venting efficiency.

  • Maintains structural reliability across a broad temperature spectrum (-40°C to +70°C).

  • Constructed with 16MnDR steel for enhanced durability and chemical resistance.

Overview

The CG1.1E portable tank container is a specialized unit tailored to safely move and temporarily store hazardous chemicals, especially Alkyl Aluminum (UN3394). It boasts a sturdy structure and a 1600-liter volume, making it suitable for both shipping and interim storage. With adherence to international standards and a single-compartment design, this model ensures optimal containment performance even under challenging environmental factors.

Detailed Description

Purpose-built for transporting hazardous, temperature-sensitive chemicals like Alkyl Aluminum, the CG1.1E tank container delivers outstanding resilience from -40°C to +70°C. Fabricated from 16MnDR carbon steel with a 10 mm thick shell, it conforms to GB/T150 design guidelines and IMDG CODE requirements, making it viable for international maritime routes.

The tank includes a high-capacity rupture disc system and lightweight configuration, with a tare weight of just 834 kg, allowing a payload up to 1202 kg. Designed for stability and safety, the CG1.1E suits industries like petrochemicals and emergency response that demand secure bulk transport of reactive goods.

Core Specifications

Parameter Value Parameter Value
UN Portable Tank Instruction T21 External Dimensions (mm) 1875 × 1120 × 1337
Test Pressure (bar) 15 Max. Allowable Working Pressure (bar) 6
Volume (L) at 20℃ 1600 Design Temperature (℃) -40 to +70
Model CG1.1E Max. Operating Gross Mass (kg) 2036
Min. Safe Vent Capacity (Nm³/s) 0.788 Inner Shell Material & Thickness 16MnDR, 10mm
Rupture Disc Specs YC25-1.5-A, DN25, 1pc Tare Mass (kg) 834
Max. Permissible Payload (kg) 1202 Applicable Cargo Alkyl Aluminum (UN3394)

Safety Guidelines

  • Keep the tank within its specified temperature and pressure range.

  • Ground and bond the tank during loading/unloading to avoid static discharge.

  • Ensure the rupture disc is in good working condition and maintained regularly.

  • Use only in inert conditions; avoid any external insulation or pressurization systems.

  • Handle Alkyl Aluminum with extreme care due to its reactive nature.

Use Cases

  • Petrochemical Applications: Suitable for process-specific storage of reactive agents.

  • Chemical Manufacturing: Secure transportation of air-sensitive inputs.

  • Logistics for Dangerous Goods: Facilitates global movement of Class 4.2 materials.

  • Field Chemistry Labs: Useful for handling volatile compounds during mobile operations.

  • Emergency Hazard Control: Effective as a rapid-response containment solution for flammable spills.
