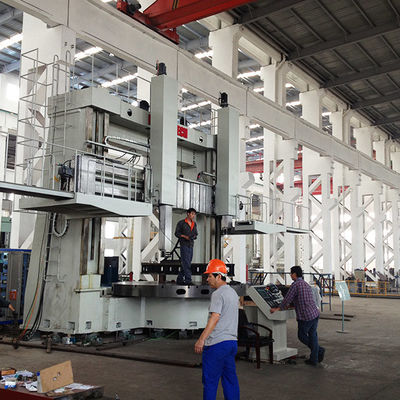

Lushen CK5240 CNC Vertical Lathe High Precision Smart Manufacturing Speed 2500mm/min

MOQ:	Negotiable
Price:	$268,800 (subject to the contract)
Delivery Period:	1 year

Detail Information

Product Description

Detail Information

Place of Origin

Zibo, China

Brand Name

Lushen

Certification

JB/GB

Model Number

CK5240

Max. Turning Diameter:

Φ4000 Mm

Table Diameter:

Φ3500 Mm

Max. Workpiece Height:

2500 Mm

Max. Workpiece Weight:

Worktable Speed (Stages&Range):

2 Mechanical Gears/Stepless Variable&0.2~41rpm

Tool Post Feed Rate (Type&Range):

Stepless Variable&0.1-500 Mm/min

Tool Post Rapid Traverse Speed:

2500 Mm/min

Maximum Tool Post Travel (X-axis):

-50 To +2200 Mm

Ram Vertical Travel (Z-axis):

1250 Mm

Ram Cross-Section Dimensions:

240×240 Mm

Left Tool Post Cutting Force Capacity:

40 KN (CNC Controlled)

Right Tool Post Cutting Force Capacity:

55 KN (Conventional)

Maximum Total Cutting Force At Worktable:

95 KNm

Conventional Tool Post Machining Angle:

Crossrail Maximum Travel:

2000mm

Crossrail Lifting Speed:

320 Mm/min

Crossrail Lifting Motor Power:

7.5 KW

Feed System Servo Motor Torque (Horizontal & Vertical):

20.5 Nm

Main Motor Power (AC Variable Frequency Drive):

55 KW

Approximate Machine Weight:

54 Metric Tons

Machine Dimensions (L×W×H):

9500×5800×6600 Mm

Positioning Accuracy:

≤0.1/1000 Mm

Repeat Positioning Accuracy:

≤0.02/1000 Mm

Table Surface Flatness:

0.03mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Table Face Runout (Axial):

0.02mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Table Radial Runout:

0.02mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Parallelism Of Tool Carrier Horizontal Movement To Table Surface:

0.03mm/1000mm

Perpendicularity Of Tool Carrier Horizontal Movement (Left-Right) To Table Surface:

0.03mm/1000mm

Perpendicularity Of Tool Carrier Horizontal Movement (Front-Rear) To Table Surface:

0.06mm/1000mm

Cylindrical Machining Accuracy:

0.02/300mm

Flat Surface Machining Accuracy:

0.04mm/1000mm

Flat/Cylindrical Surfaces Roughness:

Ra1.6μm

Contoured Surfaces Roughness:

Ra3.2μm

Highlight:

precision cnc vertical lathe

precision vertical lathe machine

2500mm/min cnc vertical lathe

Product Description

Heavy-Duty CK5240 CNC Vertical Lathe High Precision Superior Load Capacity Smart Manufacturing

Product Overview

Dual-column CNC vertical lathe designed for high-precision, heavy-duty turning operations
Maximum turning diameter up to 4000 mm and maximum workpiece weight of 40 tons
Equipped with high-rigidity hydrostatic guideways and advanced static/dynamic stiffness
Ideal for machining ferrous, non-ferrous, and select non-metal materials
Supports rough and finish turning of cylindrical, conical, and flat surfaces
Integrated Siemens or GSK CNC systems with servo-driven axes for smooth, reliable operation
Tailored for industries such as energy, heavy machinery, aerospace, and defense

Product Description

The CK5240 Series CNC Vertical Lathe is engineered with cutting-edge technology and an optimized CAD design that integrates mechatronics for modern manufacturing. This double-column lathe features robust structural components that allow it to handle ultra-heavy loads while maintaining outstanding precision and stability.

The worktable utilizes a high-precision hydrostatic bearing system and dual-gear transmission with a 55 kW DC motor for smooth torque control and stable performance. The crossbeam, columns, and slideways are all constructed from high-strength, low-stress cast iron to ensure long service life, exceptional rigidity, and minimal thermal deformation.

With intelligent CNC capabilities and independent servo drives, the left tool post is fully numerical-controlled, enabling high-speed, high-accuracy multi-axis machining. The machine is suitable for steel, alloys, copper, and aluminum parts requiring deep cuts and tight tolerances.

Key Technical Parameters

Parameter	Value	Parameter	Value
Max. Turning Diameter	Φ4000 mm	Max. Workpiece Height	3500 mm
Worktable Diameter	Φ3500 mm	Max. Workpiece Weight	40 tons
Worktable Speed Range	0.4–40 rpm	Max. Worktable Torque	200 kNm
Rapid Feed Rate	2000 mm/min	Cutting Feed Rate Range	0.1–500 mm/min
X-axis Travel (Tool Post)	-50~2600 mm	Z-axis Travel (Ram)	1800 mm
Beam Travel Range	3000 mm	Beam Lifting Speed	320 mm/min
Main Motor Power (DC)	55 kW	Machine Weight (Approx.)	140 tons

Operating Notes

Follow the foundation blueprint provided before machine installation to ensure structural integrity
All operations involving lifting or transport must be executed using proper rigging tools
Ensure proper alignment and clamping of the crossbeam before operation
Lubrication and hydraulic systems should be checked regularly for pressure and flow consistency
Always operate the CNC interface (Siemens or GSK) per the provided user manual and safety procedures
During heavy-load operations, monitor hydrostatic pressure levels to prevent guideway overheating
Perform routine precision checks and recalibration to maintain machining accuracy over time

Application Scenarios

Power Generation Equipment: Precise turning of turbine discs, bearing housings, and casings
Heavy Machinery Manufacturing: Machining of large gear blanks, bearing rings, and flywheels
Railway & Transportation: Axle hubs, wheels, and brake components
Aerospace Components: High-strength alloy parts requiring deep cutting and precision finishing
Defense Industry: Machining of armored vehicle parts, casings, and large structural rings
Mining & Metallurgy: Turning of wear-resistant parts and metal rolling components
