CK5230 CNC Double Column Cnc Vertical Turning Lathe 3000mm Siemens 808Dsl Control

MOQ:	Negotiable
Price:	$212,800 (subject to the contract)
Delivery Period:	1 year

Detail Information

Product Description

Detail Information

Place of Origin

Zibo, China

Brand Name

Lushen

Certification

JB/GB

Model Number

CK5230

Max. Turning Diameter:

Φ3000 Mm

Table Diameter:

Φ2500 Mm

Max. Workpiece Height:

2000 Mm

Max. Workpiece Weight:

Worktable Speed (Stages&Range):

2 Mechanical Gears/Stepless Variable&0.2~45 Rpm

Tool Post Feed Rate (Type&Range):

Stepless Variable&0.1-500 Mm/min

Tool Post Rapid Traverse Speed:

2500 Mm/min

Maximum Tool Post Travel (X-axis):

-50 To +1900mm

Ram Vertical Travel (Z-axis):

1000 Mm

Ram Cross-Section Dimensions:

200×255 Mm

Left Tool Post Cutting Force Capacity:

35 KN (CNC Controlled)

Right Tool Post Cutting Force Capacity:

40 KN (Conventional)

Maximum Total Cutting Force At Worktable:

85 KNm

Conventional Tool Post Machining Angle:

Crossrail Maximum Travel:

1500 Mm

Crossrail Lifting Speed:

350 Mm/min

Crossrail Lifting Motor Power:

7.5 KW

Feed System Servo Motor Torque (Horizontal & Vertical):

20.5 Nm

Main Motor Power (AC Variable Frequency Drive):

55 KW

Approximate Machine Weight:

43 Metric Tons

Machine Dimensions (L×W×H):

7200×5200×5800 Mm

Positioning Accuracy:

≤0.1/1000 Mm

Repeat Positioning Accuracy:

≤0.02/1000 Mm

Table Surface Flatness:

0.03mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Table Face Runout (Axial):

0.02mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Table Radial Runout:

0.02mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Parallelism Of Tool Carrier Horizontal Movement To Table Surface:

0.03mm/1000mm

Perpendicularity Of Tool Carrier Horizontal Movement (Left-Right) To Table Surface:

0.03mm/1000mm

Perpendicularity Of Tool Carrier Horizontal Movement (Front-Rear) To Table Surface:

0.06mm/1000mm

Cylindrical Machining Accuracy:

0.02/300mm

Flat Surface Machining Accuracy:

0.04mm/1000mm

Flat/Cylindrical Surfaces Roughness:

Ra1.6μm

Contoured Surfaces Roughness:

Ra3.2μm

Highlight:

cnc vertical turning lathe 3000mm

double column cnc vertical turning lathe

3000mm cnc vertical lathe manufacturers

Product Description

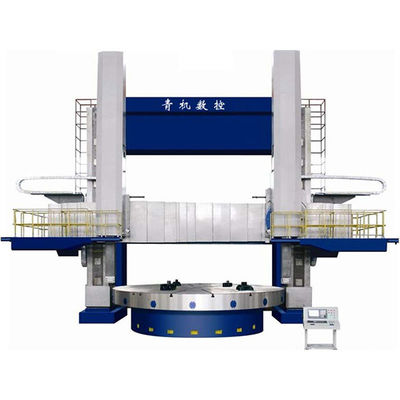

CK5230 CNC Double-Column Vertical Lathe Heavy-Duty 3000mm Turning Diameter Siemens 808Dsl Control

Product Overview:

Dual-turret design: Includes one CNC turret and one manual turret.
High load capacity: Can handle workpieces up to 25 tons.
High precision: Positioning accuracy of ≤0.1/1000mm and repeatability of ≤0.02/1000mm.
Efficient operation: Continuous spindle speed range from 0.2 to 45 rpm.
Heavy-duty cutting: Left turret CNC and right turret manual for versatile cutting.
Advanced SIEMENS control system: Ensures precise and reliable machine operation.

Product Description:

The CK5230 CNC Vertical Lathe is a cutting-edge machine tool developed by our engineers, combining advanced domestic and international design techniques. With a focus on high precision and durability, this lathe is designed for heavy-duty cutting tasks such as turning cylindrical, conical, threaded, and complex curved surfaces. Equipped with dual turrets—one CNC and one manual—the CK5230 can handle a wide range of materials and workpieces, including black metals, non-ferrous metals, and some non-metallic materials.

The machine's sturdy structure features high-strength HT250 castings, while the guide surfaces are hardened to HB200 or higher through high-frequency quenching, providing excellent wear resistance. With the ability to support heavy workpieces up to 25 tons, the CK5230 is perfect for single-piece and small batch production, especially in industries where the variety of parts is high.

Product Parameters:

Parameter	Specification	Parameter	Specification
Maximum Turning Diameter	Φ3000 mm	Maximum Tool Travel (X Axis)	-50 ~ 1900 mm
Table Diameter	Φ2500 mm	Spindle Vertical Travel (Z Axis)	1000 mm
Maximum Workpiece Height	2000 mm	Spindle Section Size	200 x 200 mm
Maximum Workpiece Weight	25 tons	Left Turret Cutting Force	35 kN
Spindle Speed Range	0.2 ~ 45 rpm	Right Turret Cutting Force	40 kN
Tool Feed Speed Range	0.1 ~ 500 mm/min	Total Spindle Cutting Force	85 kNm

Product Precautions:

Installation: Ensure the base is properly prepared before installation.
Lubrication: Use the recommended oils and maintain regular lubrication for all moving parts.
Environment: Keep the machine in a clean, dry environment, free from corrosive substances.
Temperature: Avoid operating in environments with temperature fluctuations exceeding 40°C.

Product Application Scenarios:

Aerospace: Precision machining of heavy and complex aerospace components.
Automotive: Manufacturing of parts requiring high precision and large workpieces, such as engine components and transmission housings.
Energy: Ideal for machining large components used in the energy industry, including turbines and heavy equipment.
Heavy Machinery: Suitable for machining large components of industrial machinery where high cutting forces and precision are required.
Defense: Used in defense applications for manufacturing heavy-duty and precision components.

Tags:

Products

MOQ:	Negotiable
Price:	$212,800 (subject to the contract)
Delivery Period:	1 year

Detail Information

Product Description

Detail Information

Place of Origin

Zibo, China

Brand Name

Lushen

Certification

JB/GB

Model Number

CK5230

Max. Turning Diameter:

Φ3000 Mm

Table Diameter:

Φ2500 Mm

Max. Workpiece Height:

2000 Mm

Max. Workpiece Weight:

25 T

Worktable Speed (Stages&Range):

2 Mechanical Gears/Stepless Variable&0.2~45 Rpm

Tool Post Feed Rate (Type&Range):

Stepless Variable&0.1-500 Mm/min

Tool Post Rapid Traverse Speed:

2500 Mm/min

Maximum Tool Post Travel (X-axis):

-50 To +1900mm

Ram Vertical Travel (Z-axis):

1000 Mm

Ram Cross-Section Dimensions:

200×255 Mm

Left Tool Post Cutting Force Capacity:

35 KN (CNC Controlled)

Right Tool Post Cutting Force Capacity:

40 KN (Conventional)

Maximum Total Cutting Force At Worktable:

85 KNm

Conventional Tool Post Machining Angle:

±30°

Crossrail Maximum Travel:

1500 Mm

Crossrail Lifting Speed:

350 Mm/min

Crossrail Lifting Motor Power:

7.5 KW

Feed System Servo Motor Torque (Horizontal & Vertical):

20.5 Nm

Main Motor Power (AC Variable Frequency Drive):

55 KW

Approximate Machine Weight:

43 Metric Tons

Machine Dimensions (L×W×H):

7200×5200×5800 Mm

Positioning Accuracy:

≤0.1/1000 Mm

Repeat Positioning Accuracy:

≤0.02/1000 Mm

Table Surface Flatness:

0.03mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Table Face Runout (Axial):

0.02mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Table Radial Runout:

0.02mm/1000mm (with An Additional 0.01mm Tolerance Per 1000mm Diameter Increase)

Parallelism Of Tool Carrier Horizontal Movement To Table Surface:

0.03mm/1000mm

Perpendicularity Of Tool Carrier Horizontal Movement (Left-Right) To Table Surface:

0.03mm/1000mm

Perpendicularity Of Tool Carrier Horizontal Movement (Front-Rear) To Table Surface:

0.06mm/1000mm

Cylindrical Machining Accuracy:

0.02/300mm

Flat Surface Machining Accuracy:

0.04mm/1000mm

Flat/Cylindrical Surfaces Roughness:

Ra1.6μm

Contoured Surfaces Roughness:

Ra3.2μm

Minimum Order Quantity:

Negotiable

Price:

$212,800 (subject to the contract)

Delivery Time:

1 year

Highlight

cnc vertical turning lathe 3000mm

double column cnc vertical turning lathe

3000mm cnc vertical lathe manufacturers

Product Description

CK5230 CNC Double-Column Vertical Lathe Heavy-Duty 3000mm Turning Diameter Siemens 808Dsl Control

Product Overview:

Dual-turret design: Includes one CNC turret and one manual turret.
High load capacity: Can handle workpieces up to 25 tons.
High precision: Positioning accuracy of ≤0.1/1000mm and repeatability of ≤0.02/1000mm.
Efficient operation: Continuous spindle speed range from 0.2 to 45 rpm.
Heavy-duty cutting: Left turret CNC and right turret manual for versatile cutting.
Advanced SIEMENS control system: Ensures precise and reliable machine operation.

Product Description:

Product Parameters:

Parameter	Specification	Parameter	Specification
Maximum Turning Diameter	Φ3000 mm	Maximum Tool Travel (X Axis)	-50 ~ 1900 mm
Table Diameter	Φ2500 mm	Spindle Vertical Travel (Z Axis)	1000 mm
Maximum Workpiece Height	2000 mm	Spindle Section Size	200 x 200 mm
Maximum Workpiece Weight	25 tons	Left Turret Cutting Force	35 kN
Spindle Speed Range	0.2 ~ 45 rpm	Right Turret Cutting Force	40 kN
Tool Feed Speed Range	0.1 ~ 500 mm/min	Total Spindle Cutting Force	85 kNm

Product Precautions:

Installation: Ensure the base is properly prepared before installation.
Lubrication: Use the recommended oils and maintain regular lubrication for all moving parts.
Environment: Keep the machine in a clean, dry environment, free from corrosive substances.
Temperature: Avoid operating in environments with temperature fluctuations exceeding 40°C.

Product Application Scenarios:

Aerospace: Precision machining of heavy and complex aerospace components.
Automotive: Manufacturing of parts requiring high precision and large workpieces, such as engine components and transmission housings.
Energy: Ideal for machining large components used in the energy industry, including turbines and heavy equipment.
Heavy Machinery: Suitable for machining large components of industrial machinery where high cutting forces and precision are required.
Defense: Used in defense applications for manufacturing heavy-duty and precision components.
